उत्पाद विवरण:
|
|
| Place of Origin: | CHINA |
|---|---|
| ब्रांड नाम: | MTSCO |
| प्रमाणन: | ISO 9001 & PED & AD2000 |
| Model Number: | MTSCOSSCT39 |
|
भुगतान & नौवहन नियमों:
|
|
| Minimum Order Quantity: | negotiable |
| मूल्य: | 5500-10000USD/TON |
| Packaging Details: | Iron Case / Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 300 Tons / Month |
|
विस्तार जानकारी |
|||
| Material: | S30403 / S31603 | Standard: | ASTM A269 / ASTM A213 Dual Standards Etc |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | Type: | welded |
| Surface: | Bright Annealed / Pickled | Feature: | flame retardant |
| हाई लाइट: | स्टेनलेस स्टील के तार पाइप,निर्बाध स्टेनलेस स्टील पाइप |
||
उत्पाद विवरण

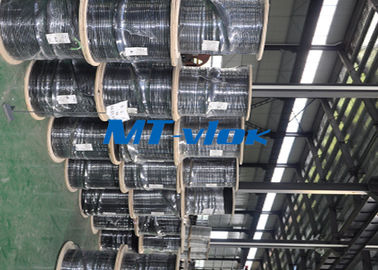

ASTM A269 S30403 / S31603 Stainless Steel Welded Coiled Tube For Multi-core Tube
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Where the multi-core coiled tubing used ?
Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.
nditions.
| Ordering code number |
Tube size (O.D x Thickness x Core) |
Overall Diameter (.mm) |
Sheath Thickness (.mm) |
Bundle Weight (kg/M) |
Max Pressure (Bar) |
| HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 |
Working:180Bar
Test:270Bar |
| HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 | |
| HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 | |
| HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 | |
| HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 | |
| HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 | |
| HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 | |
| HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 | |
| HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 | |
| HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 | |
| HTD-11 | 8×1.0×3 | 26 | 2.0 | 1.12 | |
| HTD-12 | 8×1.0×4 | 28 | 2.0 | 1.33 | |
| HTD-13 | 8×1.0×5 | 31 | 2.0 | 1.67 | |
| HTD-14 | 8×1.0×6 | 34 | 2.0 | 2.00 | |
| HTD-15 | 8×1.0×7 | 34 | 2.0 | 2.15 | |
| HTD-16 | 8×1.0×8 | 40 | 2.2 | 2.60 | |
| HTD-17 | 10×1.0×1 | 13 | 1.0 | 0.34 | |
| HTD-18 | 10×1.0×2 | 28 | 1.8 | 1.18 | |
| HTD-19 | 10×1.0×3 | 31 | 2.0 | 1.60 | |
| HTD-20 | 10×1.0×4 | 34 | 2.0 | 1.97 | |
| HTD-21 | 10×1.0×5 | 37 | 2.0 | 2.20 | |
| HTD-22 | 10×1.0×6 | 40 | 2.0 | 2.40 | |
| HTD-23 | 10×1.0×7 | 40 | 2.0 | 2.52 | |
| HTD-24 | 10×1.0×8 | 48 | 2.5 | 3.20 | |
| HTD-25 | 12×1.0×1 | 14 | 1.0 | 0.41 | |
| HTD-26 | 12×1.0×2 | 34 | 2.0 | 1.35 | |
| HTD-27 | 12×1.0×3 | 36 | 2.0 | 1.96 | |
| HTD-28 | 12×1.0×4 | 39 | 2.0 | 2.37 | |
| HTD-29 | 12×1.0×5 | 43 | 2.0 | 2.70 | |
| HTD-30 | 12×1.0×6 | 47 | 2.0 | 3.00 | |
| HTD-31 | 12×1.0×7 | 47 | 2.0 | 3.14 | |
| HTD-32 | 12×1.0×8 | 55 | 2.5 | 3.90 |

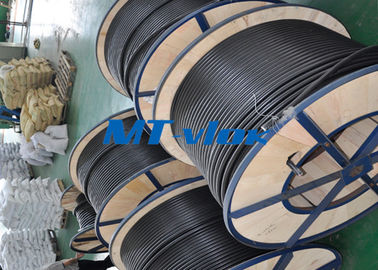

The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
