उत्पाद विवरण:
|
|
| Place of Origin: | CHINA |
|---|---|
| ब्रांड नाम: | MTSCO |
| प्रमाणन: | ISO 9001 & PED & AD2000 |
| Model Number: | MTSCOPSST31 |
|
भुगतान & नौवहन नियमों:
|
|
| Minimum Order Quantity: | negotiable |
| मूल्य: | 6000-12000USD/TON |
| Packaging Details: | Iron Case / Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 300 Tons / Month |
|
विस्तार जानकारी |
|||
| Material: | Stainless Steel 300 Series , 1.4307 , 1.4404 , 1.4401 | End Cut: | Plain End ( PE ) / Bevel End ( BE ) |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | NDT: | Eddy Current Or Hydraulic Test |
| Inspection: | 100% | Surface: | Annealing |
| हाई लाइट: | Cold Drawn Seamless Tube,seamless stainless steel tubing |
||
उत्पाद विवरण

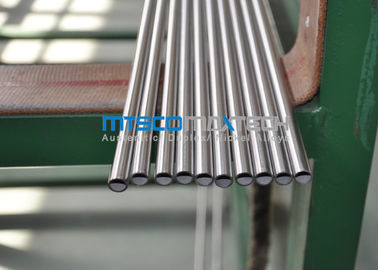

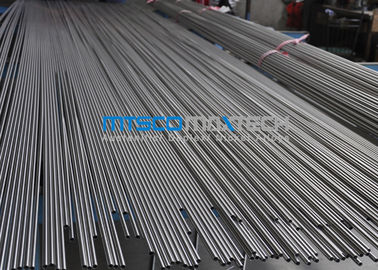

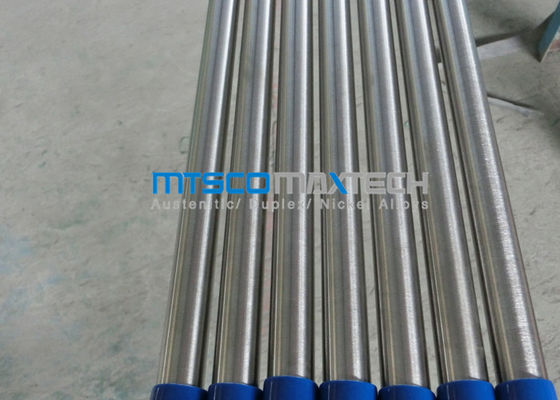

TP321 / 321H Stainless Steel Precision Bright Annealed Tubing For Oil Industry
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Test :
1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )
Product Description
| Outer Diameter | 3.18-101.6mm |
| Wall Thickness | 0.5-20mm |
| NPS | 1/8"-24" |
| Schedule | 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S |
| Material Grade | 304/304L/316/316L/321/309S/310S, etc |
| Standard | ASTM A269, ASTM A312, etc |
| Application | used in Fluid and Gas Transport, Structure and Machining,etc |
| Certificates | ISO9001:2008, PED, BV |
| Process Method | Cold Drawn/ Cold Rolled |
| Surface Finish | Annealed/ Polished |
| Package | Woven bag for each piece, then packed in seaworthy wooden cases |
| Delivery Time | 20-60 Days after receiving the deposit (Normally according to the order quantity) |
| Price Item | FOB, CIF or as negotiation |
| Payment | T/T(30% in advance, 70% against the BL Copy) or as negotiation |
| Quality Requirement | Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable |
| Main Market | Europe, Middle East, Southeast Asia, South America, etc |
Main Market :
MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .
