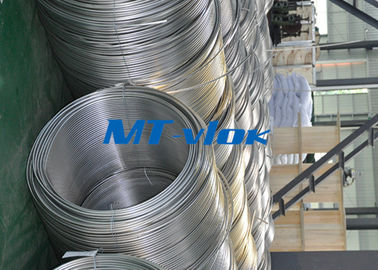

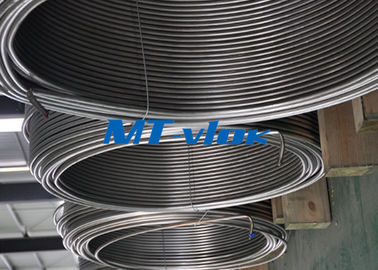

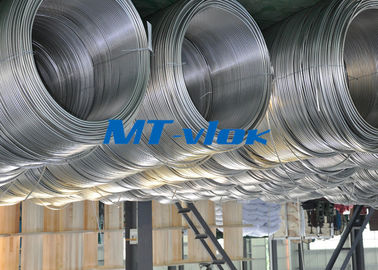

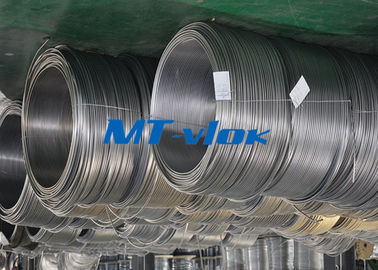

TP316 / 316L Stainless Steel Welded Super Long Coiled Tube For Petrochemical Industry

उत्पाद विवरण:
Place of Origin: CHINA
ब्रांड नाम: MTSCO
प्रमाणन: ISO 9001 & PED & AD2000
Model Number: MTSCOSSCT49
भुगतान & नौवहन नियमों:
Minimum Order Quantity: negotiable
मूल्य: 5500-10000USD/TON
Packaging Details: Iron Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month

विस्तार जानकारी

Material: 300 Series Technology: Cold rolled
Condition: Soft / Hard Test: 100 % Hydraulic Test
Length: 100 m / coil
हाई लाइट:

स्टेनलेस स्टील के तार पाइप

,

निर्बाध स्टेनलेस स्टील पाइप

उत्पाद विवरण

TP316 / 316L Stainless Steel Welded Super Long Coiled Tube For Petrochemical Industry



Where the coiled tubing used ?

1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line



C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



Application

a) For fluid & gas transport

b) Structure & machining

c) Petrochemical

d) Environmental protection

e) Electricity

f) Instrument industry etc



Advantages

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment



TP316 / 316L Stainless Steel Welded Super Long Coiled Tube For Petrochemical Industry 0



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40
