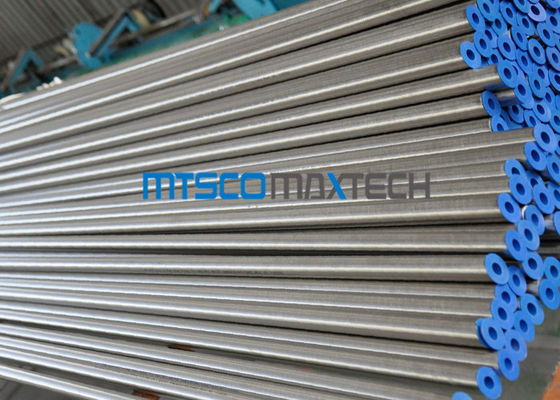

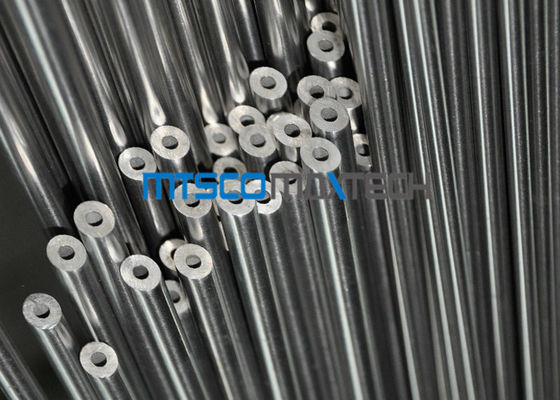

ASTM A213 / ASME SA213 Size 1 / 4 Inch Stainless Steel Seamless Tubing For Transportation

Minimum Order Quantity : negotiable मूल्य : 4300-9800USD/TON
Packaging Details : Iron Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA ब्रांड नाम : MTSCO
प्रमाणन : ISO 9001 & PED & AD2000 Model Number : MTSCOSSST43

विस्तार जानकारी

Material: Stainless Steel 300 Series , 316Ti , 317L , 347 , 321 Standard: EN 10216-5 ; ASTM A213 / SA213 ; ASTM A269 / SA269 Etc
Surface: Annealing NDT: Eddy Current Or Hydraulic Test
Type: Seamless Delivery Condition: Soft / Hard

उत्पाद विवरण

ASTM A213 / ASME SA213 Size 1 / 4 Inch Stainless Steel Seamless Tubing For Transportation





Material Grade: TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc

Outer Diameter 3.18-101.6mm

Wall Thickness 0.5-20mm

Length: Normally fixed length 6m , can as per customer’s requirement

Standard: ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .

Process Method: Cold Drawn or Cold Rolled

Application

a) For fluid & gas transport

b) Structure & machining

c) Petrochemical

d) Environmental protection

e) Electricity

f) Instrument industry etc

Advantages

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Price Item: FOB , CFR , CIF or as negotiation

Payment: TT, LC or as negotiation

Delivery Time:30 working days after received your deposit ( Normally according to the order quantity )

Package: Iron case ; woven bag or as per customer’s requirement

Quality Requirement: Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable

Test NTD ( Ultrasonic test , Eddy Current test )

Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )

Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )

Chemical Analysis ( Photoelectric Emission Spectroscopic )

Main Market: Europe , Middle East , Southeast Asia , South America etc





ASTM A213 / A213M Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A





Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07





ASTM A213 / ASME SA213 Size 1 / 4 Inch Stainless Steel Seamless Tubing For Transportation
